1 at Starting Bid Price of $ 45,000.00
Lot (qty 3) vertical High thrust Motors New

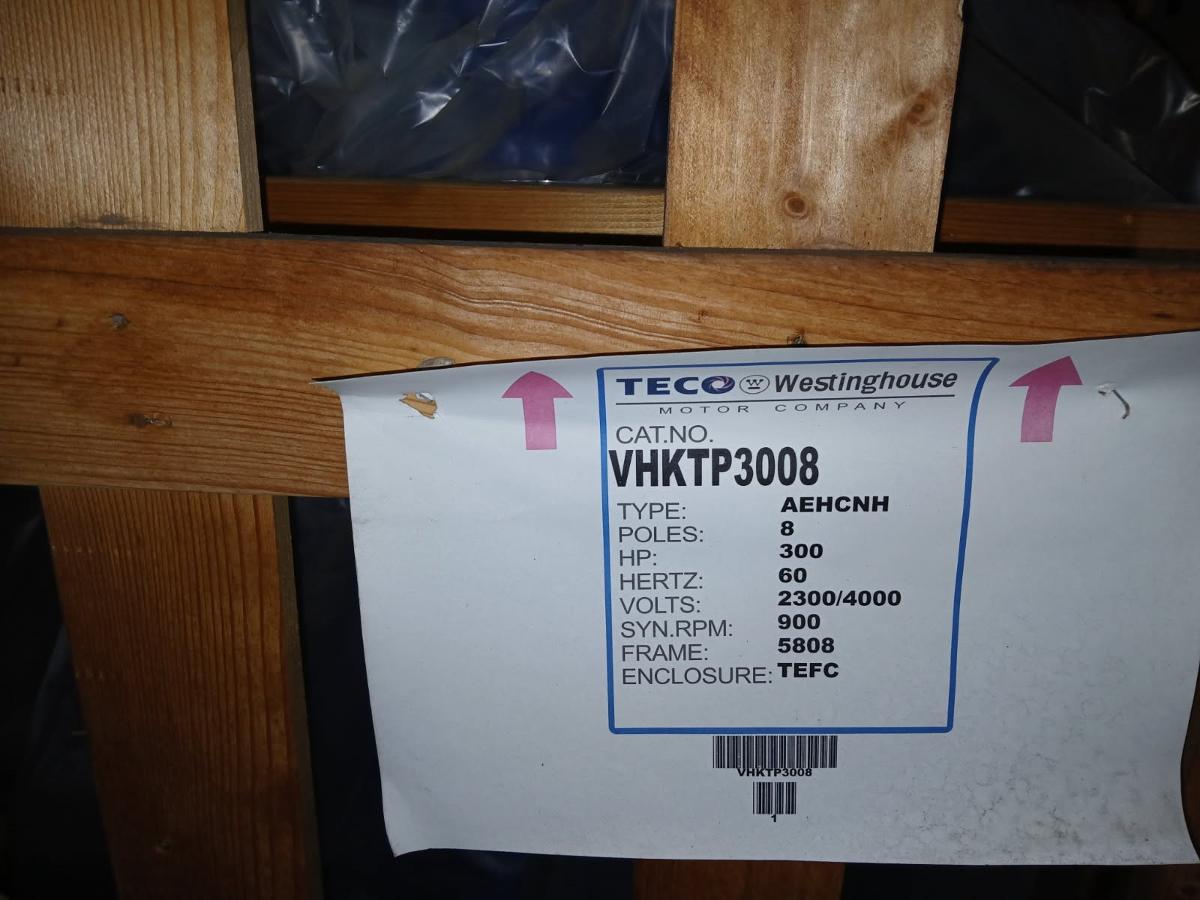

Sold “As Is-Where Is” with no warranties or liabilities. Dow recommends viewing to make your own determination of condition. Bidding closes on acceptable Bid Bidding starts at $ 1 DOW RESERVES THE RIGHT TO REJECT ANY AND/OR ALL BIDS LOAD OUT: Buyer is responsible for, securing the load, and logistics. Motors Item Qty Cat # HP RPM Frame Volts Phase Hz Encl Type Net Price __________________________________________________________________________________________________________ 1 2 VHKTP3008 300 900 5808 2300/4000 3 60 TEFC AEHCNH Mods: (M1) MOTOR RENAMEPLATED Notes: M1 - NAMEPLATE CHANGE FOR HP DE-RATE (200 HP, 2300/4000V, 3PH, 60HZ, 900 RPM, 1.15 SF, 60 C RISE) ¦High thrust MV vertical hollow shaft ¦Standard Features: Coupling and gib key, Non-Sparking Ball Type NRR, Drip/Splash Cover, Space Heaters (120V) ¦5000 Frames and Above also include Mounting Provisions for bearing RTD's and Insulated Bearing Housing ¦CSA Certified for Class I, Div. 2, Groups B, C, D; Temp Code T3 minimum ¦Class F Insulation with VPI Epoxy Resin Varnish ¦Class B Temperature Rise ¦NEMA Design B Torques ¦Oversized Main Conduit Box Rotatable in 90 Degree Increments ¦Steel Plate Conduit Box with Threaded Connection Opening(s) ¦Designed for 40C Ambient Temperature ¦Oversized Angular Contact or Spherical Thrust Bearing ¦Counterclockwise (CCW) Rotation; Viewed from Top ¦Cast Iron Frame & End Brackets; Steel Plate Fan Cover ¦1045 Solid Carbon Steel Shaft ¦Aluminum Die Cast Squirrel Cage Rotor Construction for F#449VP and Below ¦Squirrel Cage Copper or Copper Alloy Bar Rotor Construction for F#5000 ¦Guide Bearings: Re-Greasable with Mobil Polyrex™ EM Grease ¦Automatic Grease Discharge Fittings on Frames with Re-Greasable Motors ¦Labyrinth Type Metal Flinger on Both Ends for Frames 320VP & Up ¦Grounding Terminal Inside Main Box
|
